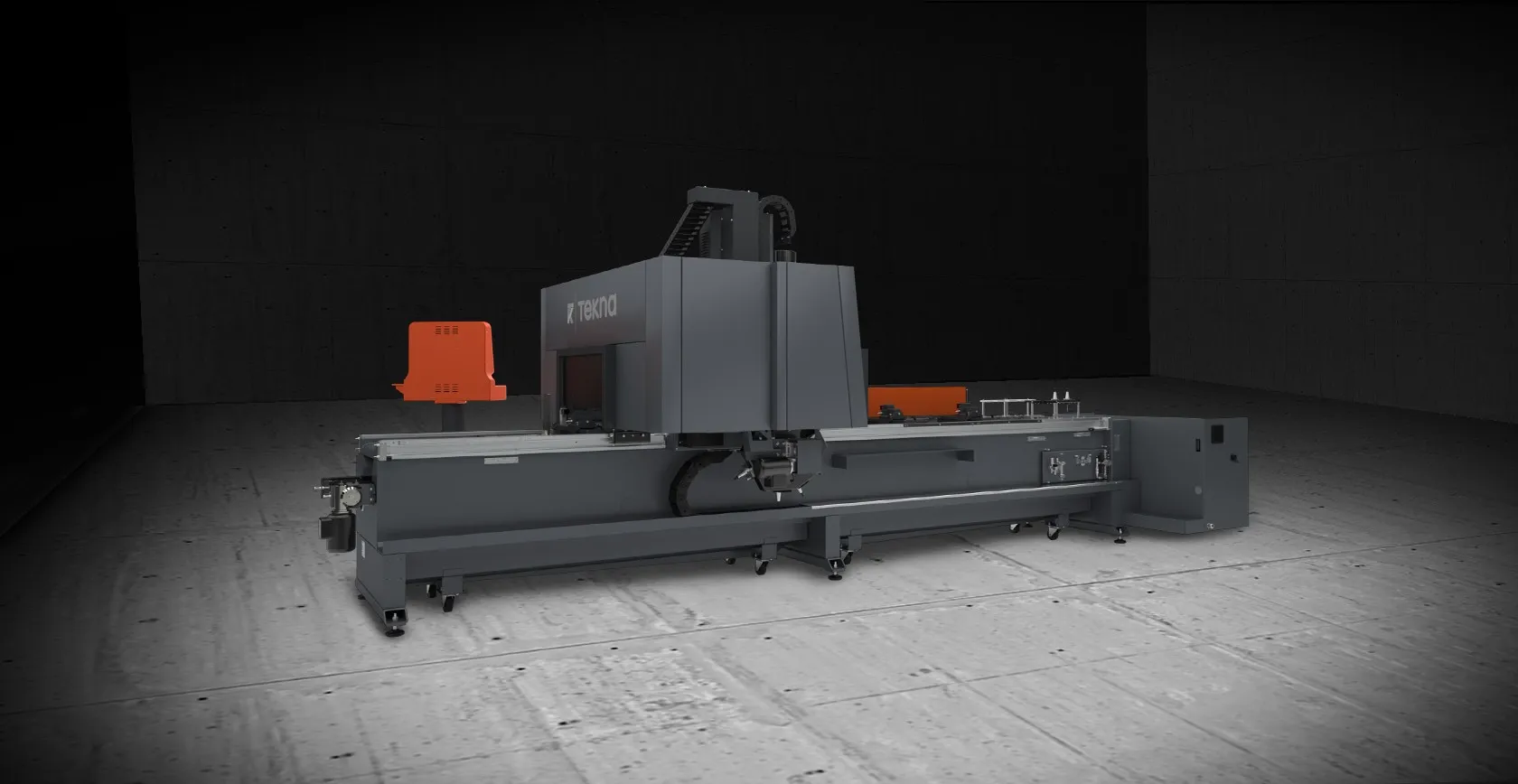

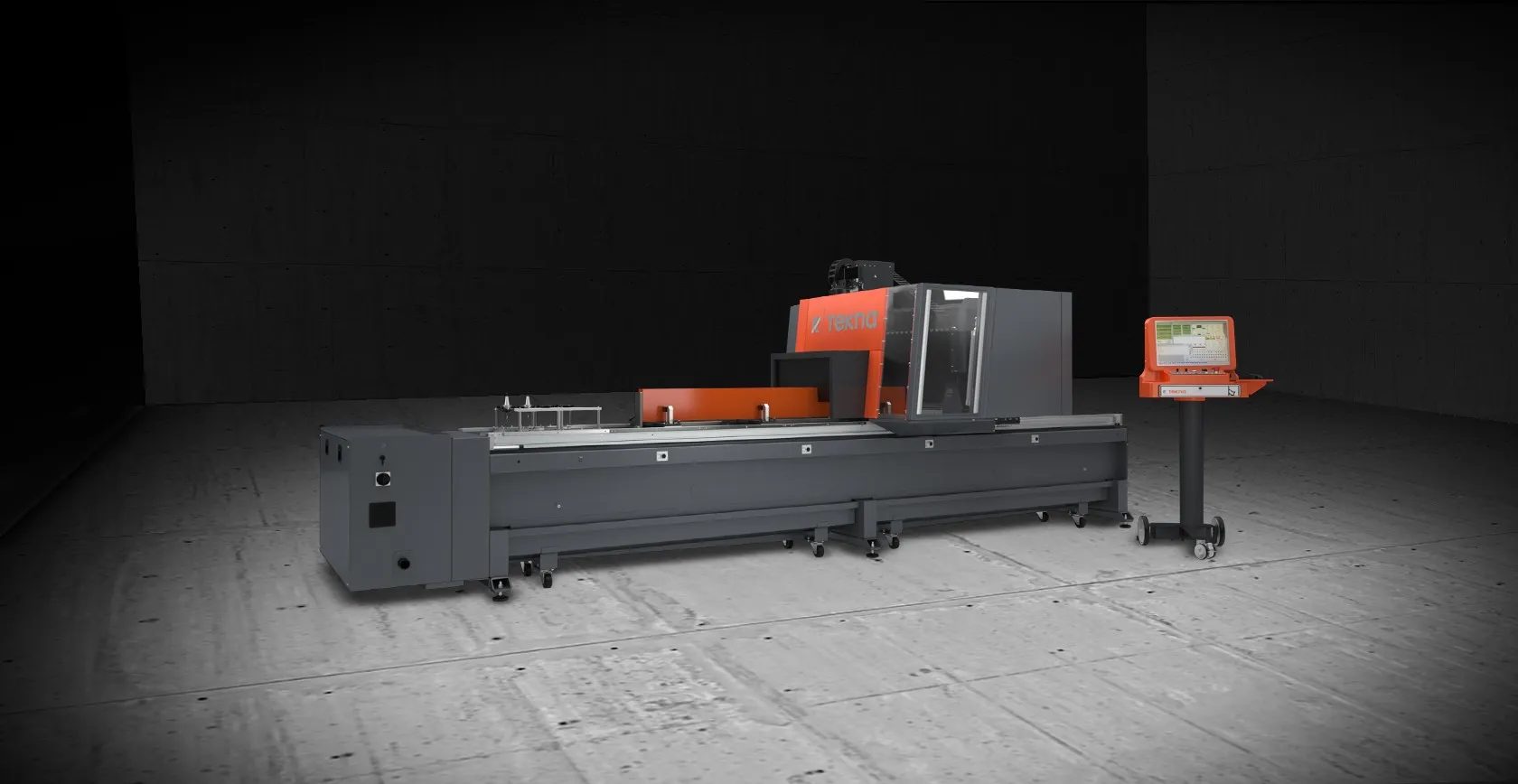

CNC machining center with 4 axes, for drilling, milling and thread cutting in aluminum, PVC, light metals and steel. The movable machining portal is equipped with an 8.5 kW electric spindle with ISO 30 tool holders with a speed of 24,000 rpm
To reduce non-productive times, the 7m machine is equipped with the option of pendulum machining as standard. Profile lengths of up to 3m can be machined alternately with the same or different programs or workpieces. While the machine is working on one side, the other side can be reloaded. Tool magazine with 4 or 8 places for automatic tool change on the left or optionally with 8 places on the machining portal, which is required for pendulum machining. In the scope of delivery, the machine is equipped with a protective cabin on the portal, which protects the operator and reduces the noise level.
TRAVEL OF THE AXES
AXIS TRAVEL
AXIS X (mm) 4.000 - 7.000
X AXIS (longitudinal) (mm)
AXIS Y (mm) 1,070
Y AXIS (cross) (mm)
AXIS Z (mm) 550
Z AXIS (vertical) (mm)
ELECTROSPINDLE
Maximum power in S1 (kW) 8,5 Max.power rating in S1 (kW)
Maximum speed (rpm) 24,000 Max.speed (r.p.m.)
Maximum torque (Nm) 13,5 Max.torque (Nm)
Tool taper ISO 30 Tool taper
Air cooling with fan ● Air cooling with electrically-driven fan
