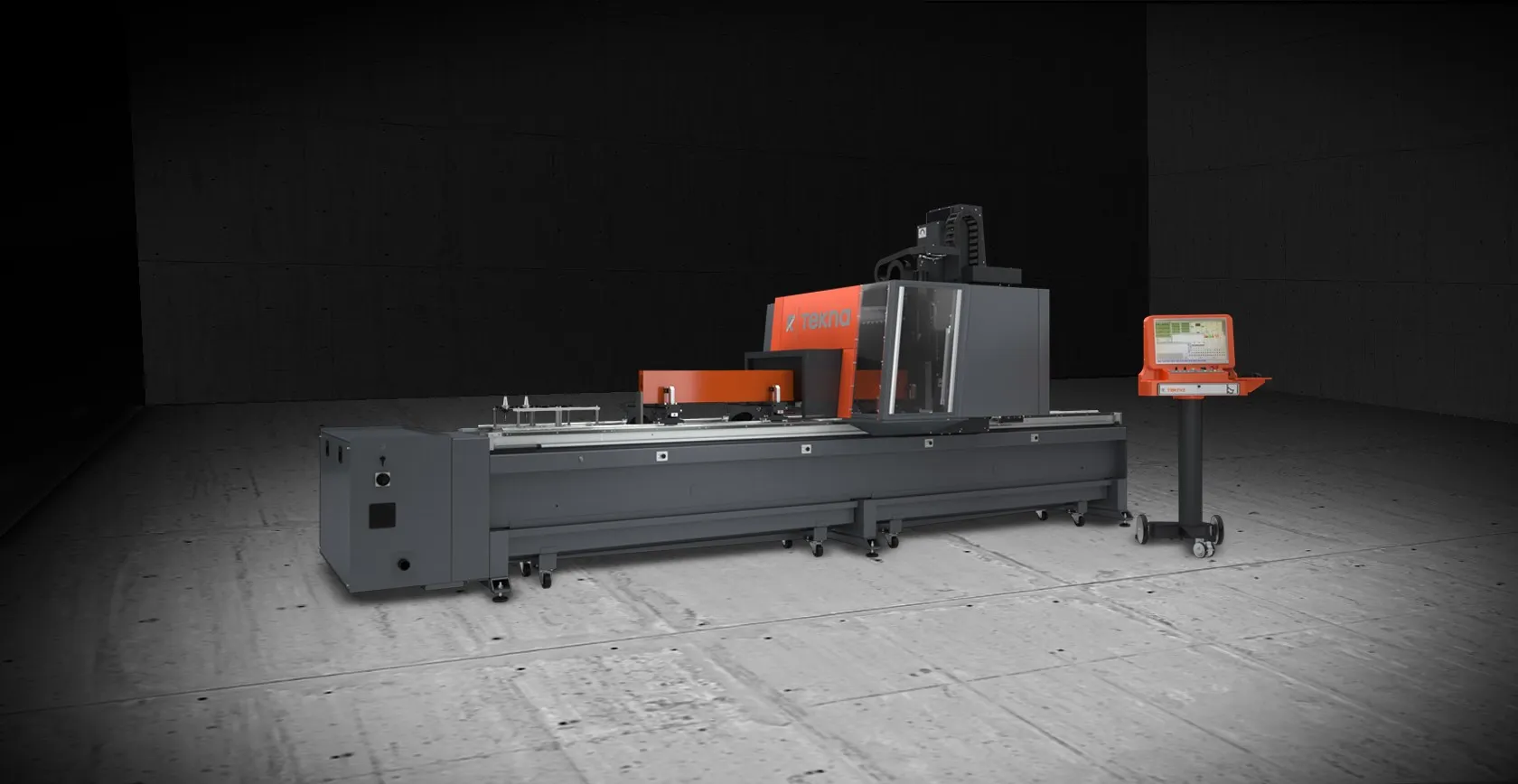

CNC machining center with 3 axes, for drilling, milling and thread cutting in aluminum, PVC, light metals and steel. The movable machining portal is equipped with a 5.5KW electric spindle, ISO 30 tool holders and a maximum speed of 18,000 rpm.
To reduce non-productive times, the 7m machine is equipped with the option of pendulum machining as standard. Profile lengths of up to 3m can be used here alternately with the same or different programs or workpiecesto be edited. While the machine can work on one side the other side can be reloaded.
Tool magazine with 4 or 8 places for automatic tool change on the left or optionally with 8 places on the machining portal, which is required for pendulum machining. In the scope of delivery, the machine is equipped with a protective cabin on the portal, which protects the operator and reduces the noise level.
TRAVEL OF THE AXES
AXIS TRAVEL
AXIS X (mm) 4,000 - 7,200
X AXIS (longitudinal) (mm)
AXIS Y (mm) 560
Y AXIS (cross) (mm)
AXIS Z (mm) 380
Z AXIS (vertical) (mm)
RAPID SPEED
POSITIONING SPEED
AXIS X (m / min) 80
X AXIS (m / min)
AXIS Y (m / min) 30
Y AXIS (m / min)
AXIS Z (m / min) 15
Z AXIS (m / min)
ACCELERATION OF THE AXIS
AXIS ACCELERATION
AXIS X (m / s²) 1.4
X AXIS (m / s²)
AXIS Y (m / s²) 3.5
Y AXIS (m / s²)
AXIS Z (m / s²) 2.5
Z AXIS (m / s²)
ELECTROSPINDLE
Maximum power in S1 (kW) 5.5 Max.power rating in S1 (kW)
Maximum speed (rpm) 18,000 Max.speed (r.p.m.)
Maximum torque (Nm) 8.7 Max.torque (Nm)
Tool taper ISO 30 Tool taper
Air cooling with fan ● Air cooling with electrically-driven fan
