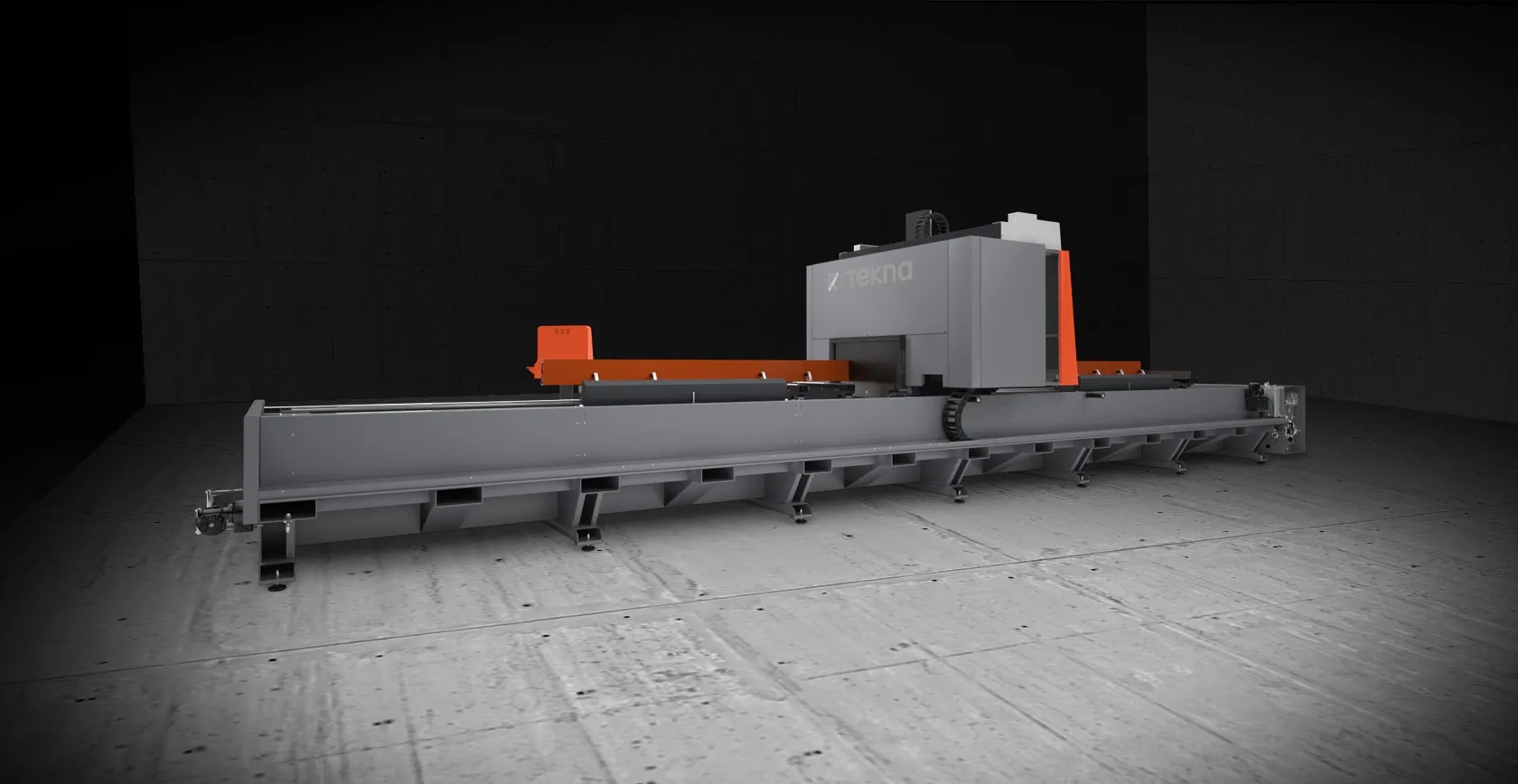

3-axis CNC machining center with superior machining capability in Y (2000 mm). It features a clamping system made up of vacuum tables that allow panels and plates to be held by vacuum. The machining center is equipped with a series of valves that turn on/off different areas of the machining table, thus concentrating the suction on one area and optimizing the clamping of components with limited dimensions.
It is designed for drilling and interpolated milling operations on composite panels, panels and plates in aluminum, stainless steel, titanium and on aluminum profiles.
Standard versions are available in two machining lengths: 4140 and 6440 mm. To create programs that control the machines, Tekna provides user-friendly software tools that can be used also by not expert programmers.
TRAVEL OF THE AXES
AXIS TRAVEL
AXIS X (mm) 4.520 - 6.980
X AXIS (longitudinal) (mm)
AXIS Y (mm) 2.370
Y AXIS (cross) (mm)
AXIS Z (mm) 290
Z AXIS (vertical) (mm)
RAPID SPEED
POSITIONING SPEED
AXIS X (m / min) 70
X AXIS (m / min)
AXIS Y (m / min) 55
Y AXIS (m / min)
AXIS Z (m / min) 30
Z AXIS (m / min)
ACCELERATION OF THE AXIS
AXIS ACCELERATION
AXIS X (m / s²) 1,6
X AXIS (m / s²)
AXIS Y (m / s²) 5
Y AXIS (m / s²)
AXIS Z (m / s²) 5
Z AXIS (m / s²)
ELECTROSPINDLE
Maximum power in S1 (kW) 10 Max.power rating in S1 (kW)
Maximum speed (rpm) 24,000 Max.speed (r.p.m.)
Maximum torque (Nm) 10,2 Max.torque (Nm)
Tool taper ISO 30 Tool taper
Air cooling with fan ● Air cooling with electrically-driven fan
